Motor Mount Hardware Kit — Paratu CP (EC2)
Motor Mount Hardware Kit — Paratu CP (EC2) - kit contents
Motor Mount Hardware Kit — Paratu CP (EC2)

Motor Mount Hardware Kit — Paratu CP (EC2)

$39.00
≈ €35 incl. VAT
/
Shipping calculated at checkout.

Configuration total:
  • Frame kits: free worldwide shipping, duties paid. Parts: duties not included.
  • In stock, ready to ship
  • Backordered, shipping soon
Warranty: see our warranty terms
Made at the Source — Taiwan
DDP shipping — no customs surprises

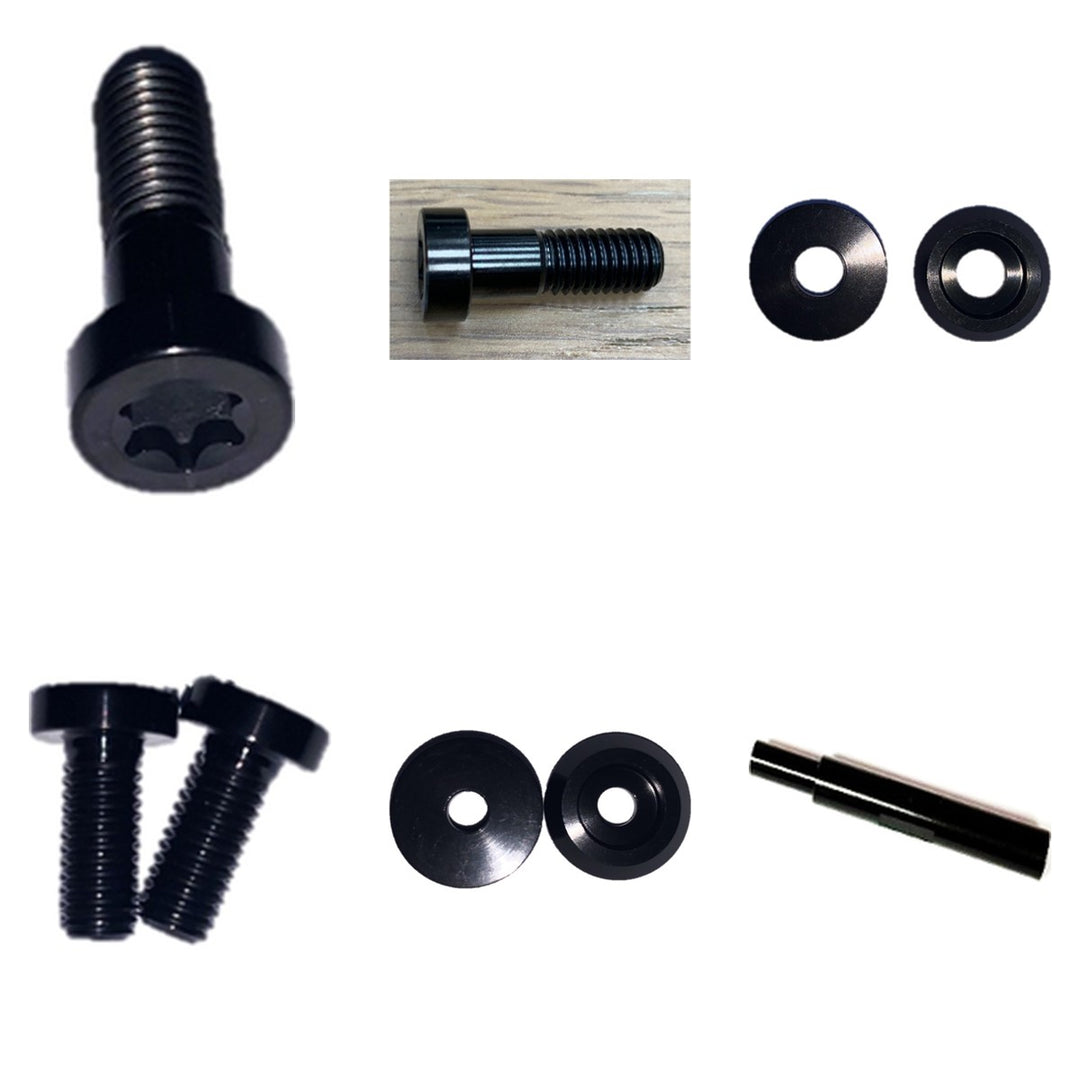

Complete hardware kit for Maxon BikeDrive AIR S motor mounting on Paratu CP (EC2). Grade 5 titanium bolts, alloy spacers, and support axle. All PVD Black.

P/N Part Qty Torque
BOLT000000019 Motor Side Bolt — NDS + back DS (Gr5 Ti, T45, M8×P1.25×15) 2 DS 8 Nm (tighten first) · NDS max 2.5 Nm (sliding bushing)
BOLT000000041 Drive-side Center Motor Mount Bolt (Gr5 Ti, T45, M8×P1.25×14.5 — 2.5 mm shorter) 1 8 Nm
SPCR000000022 Motor Spacer OD22 (T6, stepped) 3 —
BOLT000000018 Cage Bolt, used in multiple positions (Gr5 Ti, T25, M5×P0.8×11) 2 8 Nm (DS, no Loctite)
SPCR000000021 Motor Spacer OD19 (T5, stepped) 2 —
AXLE000000045 Motor Support Axle (L78, dual M5 thread) 1 —

Paratu CP (EC2) only. Not compatible with Iuhu CP (C3).

Frame number + e-mail
Spare parts are for registered Dirtlab frames. Please enter your frame number (under the bottom bracket) and the e-mail you registered the frame with. Register your frame
