Battery & Cage Hardware Kit — Paratu CP (EC2)

Battery & Cage Hardware Kit — Paratu CP (EC2)

$11.00
$12 USD international retail · DDP · $11.00 DDP EU
/
Shipping calculated at checkout.


Standard colours included. Custom finishes add per the Pantone range you specify at checkout.

Standard colour selected? Skip the Pantone field — your bike ships in our reference colour. Email sales for swatch samples or special-request shades not on the Pantone system.

Configuration total:
  • Frame kits: free worldwide shipping, duties paid. Parts: duties not included.
  • In stock, ready to ship
  • Backordered, shipping soon

Spare parts are sold to registered Bikelab frame owners only. Enter your frame serial number to unlock.

10-year frame warranty
Maxon BIKEDRIVE AIR S — 90Nm
Made at the Source — Taiwan
DDP shipping — no customs surprises

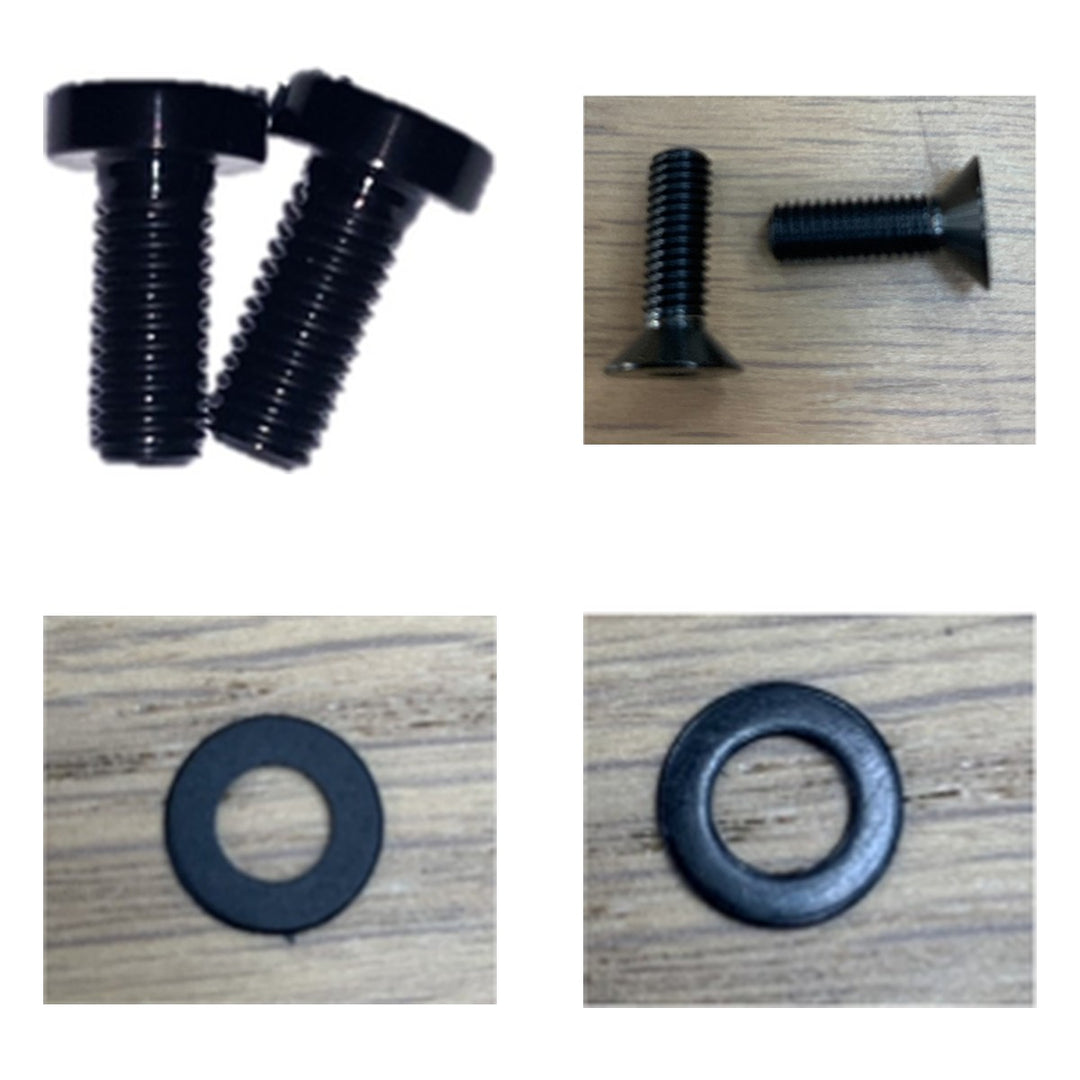

Mounting hardware kit for the 400Wh in-tube battery and battery cage on Paratu CP (EC2). Grade 5 titanium bolts and stainless/nylon spacers. All PVD Black.

P/N Part Qty Torque
BOLT000000018 Cage/Battery Bolt (Gr5 Ti, T25, M5×P0.8×11) 3 3 Nm (battery)
BOLT000000040 Battery Countersunk Bolt (AL steel, N3, M5×P0.8×10.5) 1 3 Nm
SPCR000000050 Battery Spacer Nylon (M5×10×0.5) 1 —
SPCR000000051 Battery Spacer Stainless (M5×10×0.5, SUS 304) 1 —

Paratu CP (EC2) only. Not compatible with Iuhu CP (C3).
