Main Pivot Full Kit — Chainstay (FT-CS)
Regular price$43.00
$47 USD international retail · DDP
·
$43.00 DDP EU
/
Shipping calculated at checkout.
- Frame kits: free worldwide shipping, duties paid. Parts: duties not included.
- In stock, ready to ship
- Backordered, shipping soon
Spare parts are sold to registered Bikelab frame owners only. Enter your frame serial number to unlock.
10-year frame warranty
Maxon BIKEDRIVE AIR S — 90Nm
Made at the Source — Taiwan
DDP shipping — no customs surprises

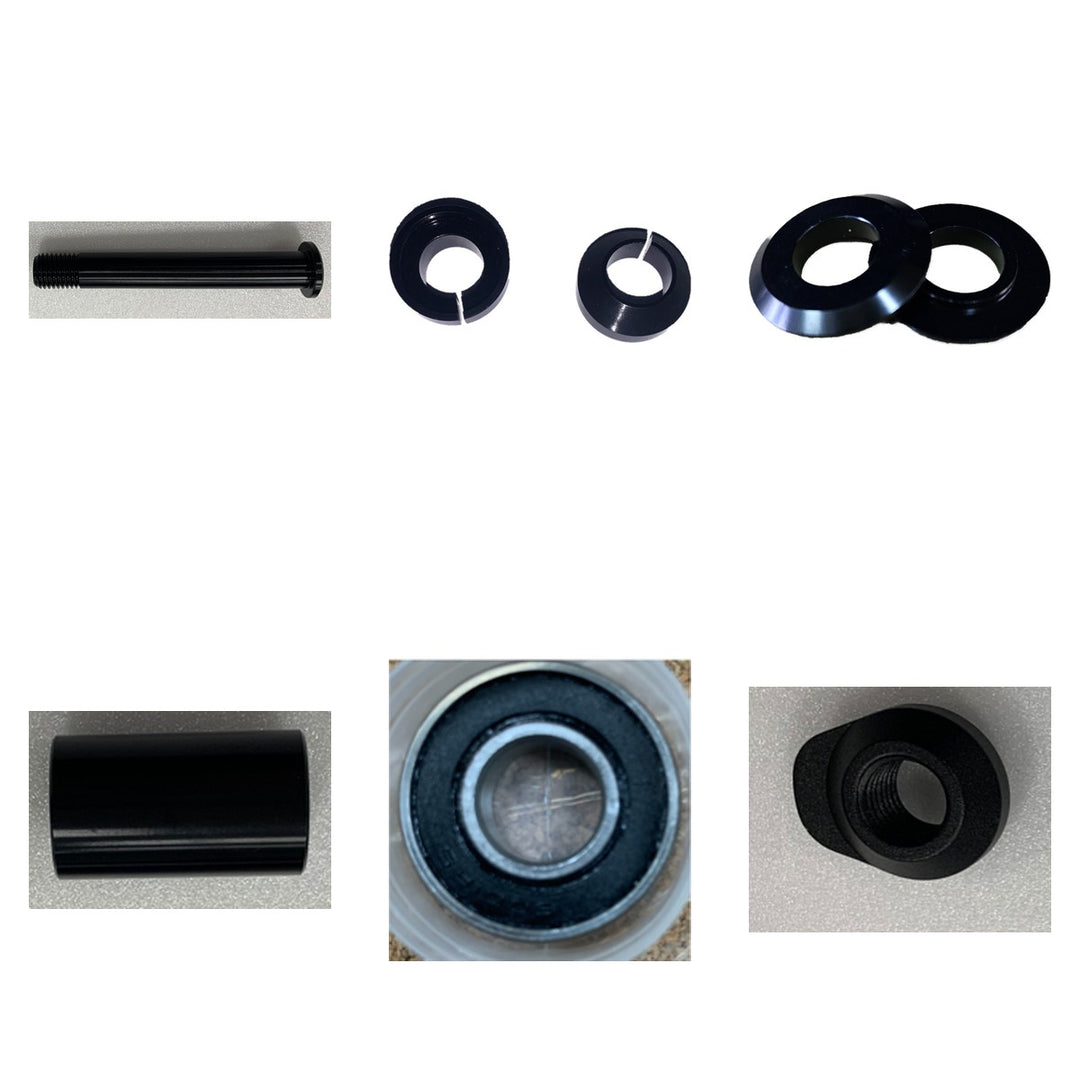

Complete hardware kit for the main concentric pivot — chainstay to front triangle joint. Includes axle, collet, spacers, support sleeve, all three bearings, and locknut.
| P/N | Part | Qty |
|---|---|---|
| AXLE000000042 | Main Pivot Axle (AL, L87.5, M12×P1.5) | 1 |
| ACSY000000005 | Pivot Collet (AL7075, OD22/ID12) | 1 |
| SPCR000000018 | Pivot Spacer (AL6061, OD26, Thk4) | 2 |
| SPCR000000046 | Support Sleeve (L29.2, OD17.2, ID12.2) | 1 |
| BERG000000012 | Bearing 6001V2RS (Ø12×Ø28×8mm) | 3 |
| PNUT000000009 | Main Pivot Locknut (M12×P1.5) | 1 |
Compatible: EC2 Paratu CP & C3 Iuhu CP.
