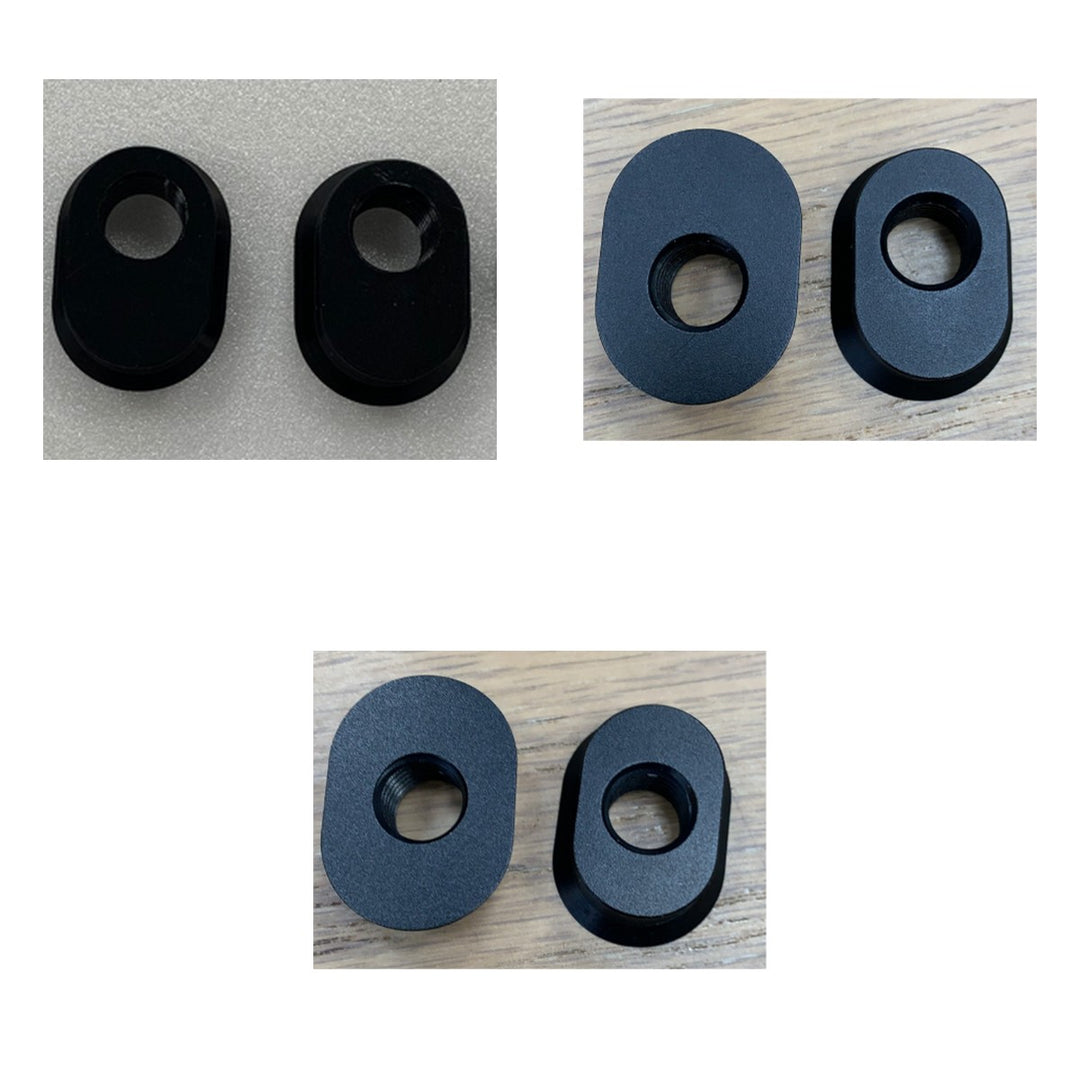

Flip Chip Set — All 3 Positions - kit contents

Flip Chip Set — All 3 Positions

$60.00
≈ €55 incl. VAT
/
Shipping calculated at checkout.

  • Frame kits: free worldwide shipping, duties paid. Parts: duties not included.
  • In stock, ready to ship
  • Backordered, shipping soon
Warranty: see our warranty terms
Made at the Source — Taiwan
DDP shipping — no customs surprises

Complete flip chip nut set for the EC2 CP / C3 CP yoke — all three positions, two nuts per position (one per side). Every frame ships with the ±5 mm chips (PNUT000000013) fitted as standard. Only need the ±2.5 mm and 0 mm chips? Order the Flip Chip Extra Kit.

P/N Position Offset Qty (1 per side)
PNUT000000013 FORWARD / HIGH — standard on every frame ±5mm 2
PNUT000000014 CENTER ±2.5mm 2
PNUT000000015 BACKWARD / LOW 0mm fixed 2

All AL alloy, M12×P1.5, Black anodized. Compatible: EC2 Paratu CP & C3 Iuhu CP.

Frame number + e-mail
Spare parts are for registered Dirtlab frames. Please enter your frame number (under the bottom bracket) and the e-mail you registered the frame with. Register your frame
