Shock Mount Hardware Set - kit contents
Shock Mount Hardware Set
Shock Mount Hardware Set - kit contents
Shock Mount Hardware Set

Shock Mount Hardware Set

$20.00
≈ €18 incl. VAT
/
Shipping calculated at checkout.

  • Frame kits: free worldwide shipping, duties paid. Parts: duties not included.
  • In stock, ready to ship
  • Backordered, shipping soon
Warranty: see our warranty terms
Made at the Source — Taiwan
DDP shipping — no customs surprises

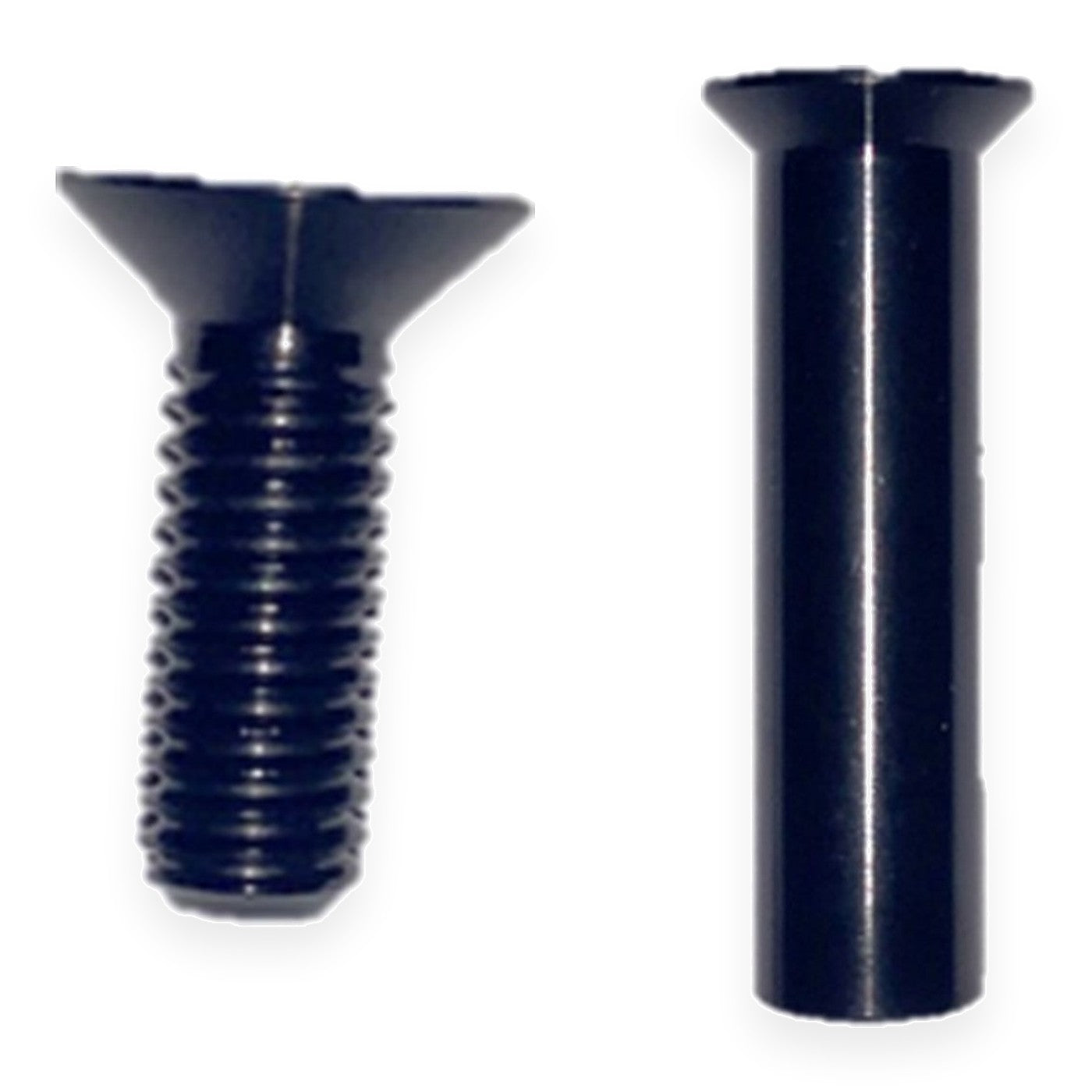

Complete rear shock mounting hardware for both frame pivots — front triangle lower mount and yoke lower mount. Grade 5 titanium, PVD Black.

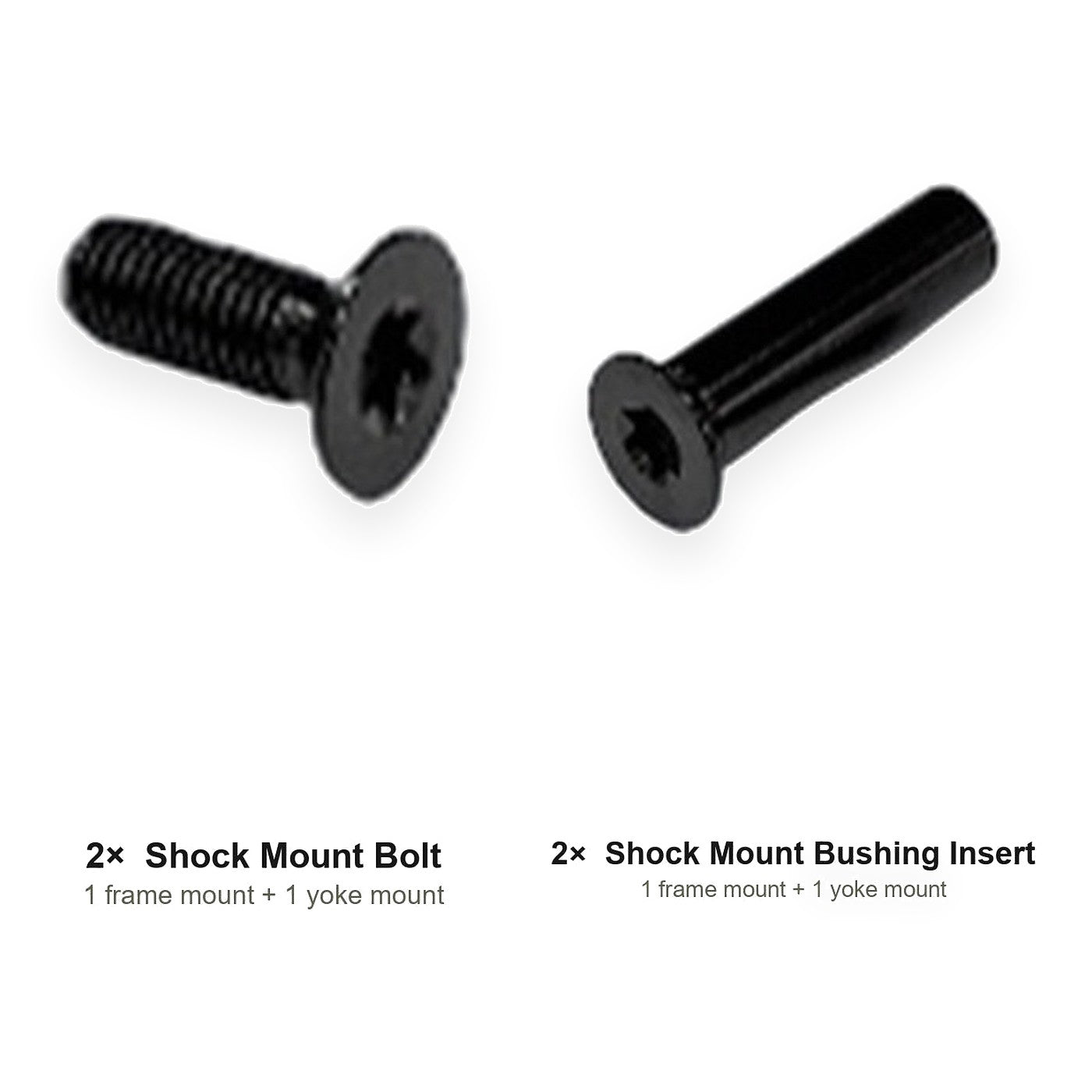

P/N Part Qty Torque
BOLT000000020 Shock Mount Bolt (Gr5 Ti, L18, M6×P1.0) 2 8 Nm
BSHG000000002 Shock Mount Bushing Insert (Gr5 Ti, OD8) 2 —

Per mount: 1 bolt + 1 insert — one set at the front-triangle mount, one set at the yoke mount.

Compatible: EC2 Paratu CP & C3 Iuhu CP.

Frame number + e-mail
Spare parts are for registered Dirtlab frames. Please enter your frame number (under the bottom bracket) and the e-mail you registered the frame with. Register your frame
