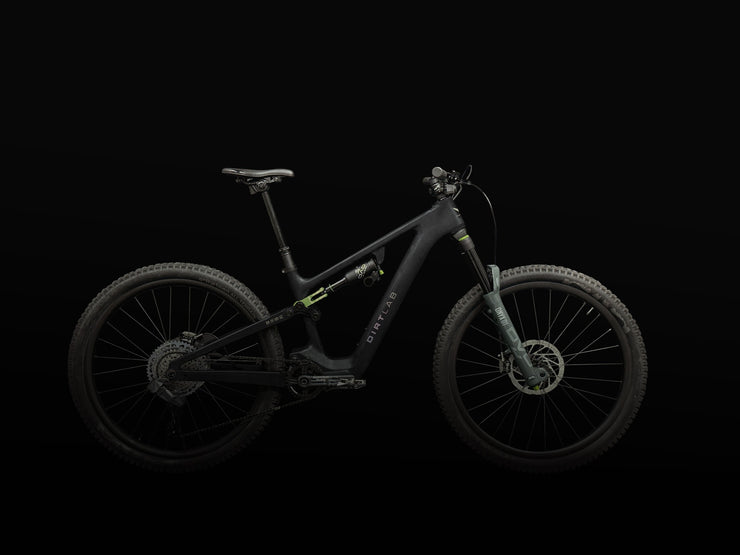

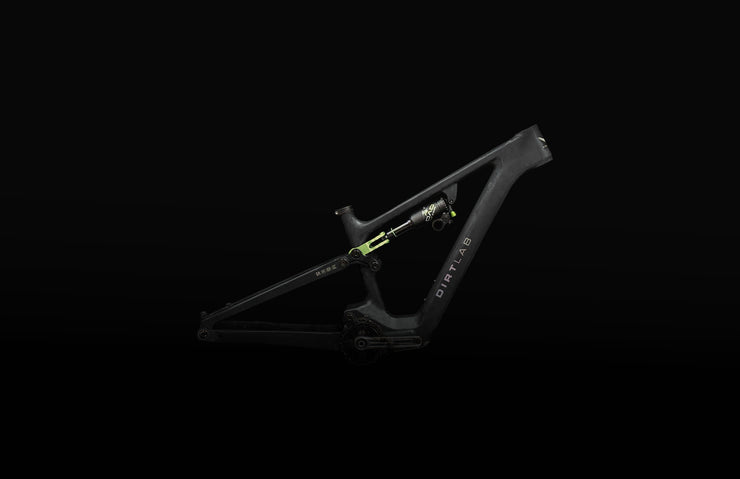

The Dirtlab Paratu CP Frame: A revolutionary e-bike frame kit with our latest G-Volve geometry and K-Volve kinematics, S-Volve sizing & fitted with the new Maxon Bikedrive Air S engine system for more power and range:
-
- G-Volve geometry is long, not too low, and slack. A 63.5-degree Head angle paired with a 77.8 seat tube angle.
- K-Volve kinematics here we switched from traditional Horst link to a concentric pivot, ruling out brake chatter disturbances to optimize the bottomless feel we are known for. low position when you use 29" F&R, High when you want a mullet setup 29F 27.5R.
- S-Volve sizing has become even better, as each frame now offers sizes within its range. We utilize a RA (Reach Adjust) headset system, allowing you to start in the 0 position, travel down your fork 10mm and use the shorter -5 position, or fork up 10mm and use the longer +5 position. The same thing works for people who are between our sizes, they can use the longer frame and start short or the smaller frame and start long.
- Driven by the new Maxon Bikedrive AIR S drive system: 88Nm, 650W, 400Wh internal battery, and an optional 250Wh. range extender.
-
-
-
Collaboration with Maxon: From 2020 to 2022, we worked closely with Maxon to integrate and refine the frame and engine system, ensuring a top-notch e-bike that rides like a dream. This resulted in the Maxon Bikedrive Air systems a 2x you system. Since then, the market has evolved, and more power was needed, so we embarked on the second phase of the Air S system, which resulted in increased power and range. We maintained the original smoothness and almost zero drag feeling in the engine, meaning that you can ride it analog if you switch off the modes, so the gears retract from the driveshaft.
-
Engine Excellence:
- Inspired by NASA’s Mars rover and copter engines
- Compact and robust with a maximum power output of 88Nm
- Three customizable ride modes are customizable via a Bluetooth app.
- Combine your data acquisition with many GPS watches or bike computers
-
-
-
Lightweight Design:
- Engine system: Only 3.7 kg
- Frame: Approximately 2490grs, color/size-dependent
- Complete bike weights: Between 14.9 Kg. (TRAIL)-18.5 Kg. (full enduro coil).
-
-
-
Customization Options:
- Four rear suspension travel options: 145, 150,160 mm, or 165mm (230 eye to eye length shock, using 57,5/60/62.5/65 stroke lengths )
- Compatible with 150-180mm front forks
- 29F&R or 29F 27.5R flip chip for unchanged geometry when switching rear wheels.
- Reach adjust headset to make sure with each travel option you can ride in the sweet spot of sizing by adjusting the reach from 0 to -5 and +5mm.
- Framekit includes: Frame, Reach Adjust Headset, Engine system, E13 core Crankset and DM 32/34T Chainring.
-
-
-
Powerful Battery System:
- Maximum engine output: 88Nm and 650W power
- In-tube battery: 1.8Kg, 400Wh, rechargeable in 3 hours
- Optional 250Wh range extender for longer adventures
-
-
-
Ride Dynamics:
- Engine tuned for MTB-specific cadence at an average of 65RPM
- Battery efficiency allows for 2-5 hour rides
- Eco-Trail and Boost modes with a magnetic shifter for easy control
- The closest you can get to real biking with 3x your strength available.
-
-
-
Pre-Order Process: We operate on a pre-order basis to ensure quality and value, with a 3-week lead time for painting and assembly. Engine delievries start from September 2025. Pre-orders can be taken from now on here or via email.
-
Color Customization: Choose any Pantone color for a fully personalized bike, with a maximum lead time of 5 weeks for stocked frames.
-
Need More Info? If you have questions or want to chat, drop us an email at sales@bikelab-inc.com
-
-
We hope this breakdown makes everything about the Dirtlab Paratu CP frame more clear and that it has sparked you to get one, If you have any more questions or need further assistance, feel free to ask, we do one to one video meetings as an extra service free of charge and can assist you to buy the right E-bike. 😊

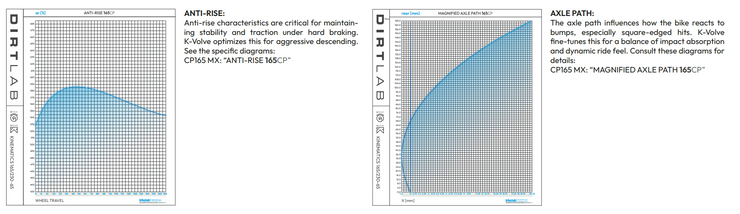

- K-Volve Kinematics

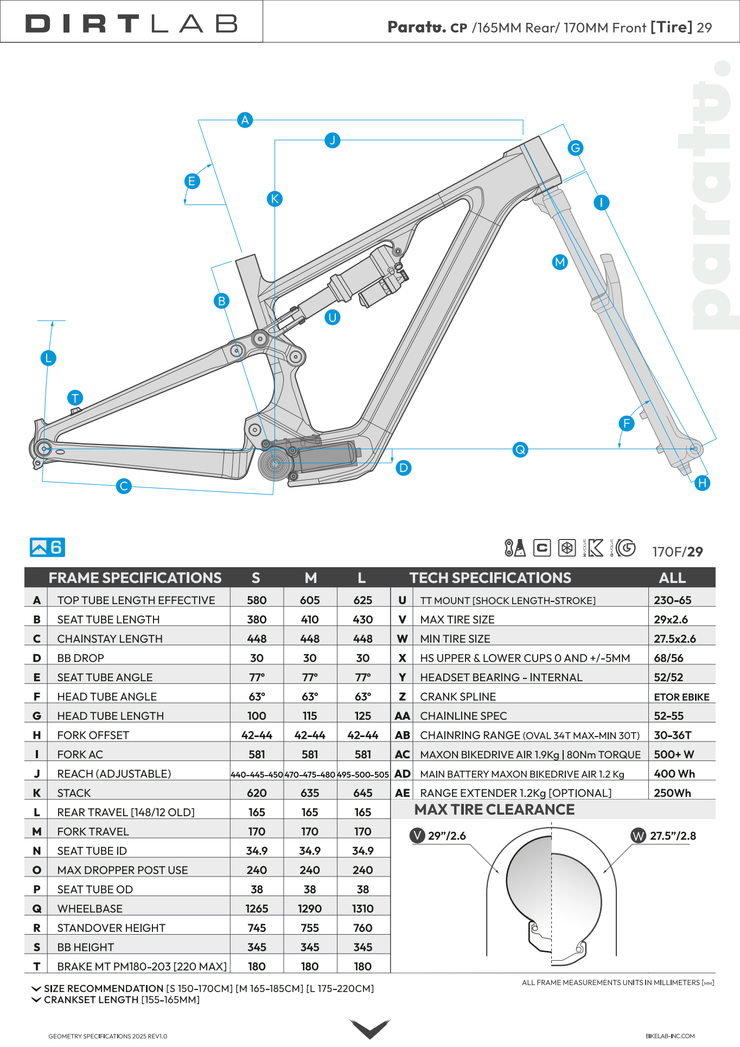

G-Volve Geometry
-
Maxon Modeshifter by Zirbel
Maxon HMI display w. integrated processor
Maxon Bikedrive air Sengine 1.95KG 88NM 666W.
Maxon 400Wh intube Battery 1.8k
