Enduro pedal Frame Collection

The revised Iuhu HL, trail enduro frame is now available in Gloss Light Green with the New Dirtlab artwork and UDH / T Type compatible.

Frame-only pricing starts at USD 2299,00 (free worldwide shipping applies)

Depending on which travel variant you choose, you can add a rear shock and suspension fork, which you either buy through us or somewhere online at more favourable prices.

The Iuhu HL can be specified in the following ways:

140 rear travel 140 front travel LOW flip bridge 29" F&R:

Rear shock needed Trunion: 185-47.5

Fork needed 551mm AC 140MM

145 rear travel, 150 front travel using standard flip bridge 29" F&R:

Rear shock needed Trunion: 185-55

Fork needed 561mm AC 150MM

145 rear travel, 160 front travel using standard or LOW flip bridge 29" F&R:

Rear shock needed Trunion: 185-55

Fork needed 571mm AC 160MM

145 rear travel, 170mm front travel 29'Front & 27.5" Rear using standard HIGH flip bridge:

Rear shock needed Trunion: 185-55

Fork needed 581mm AC 170 mm

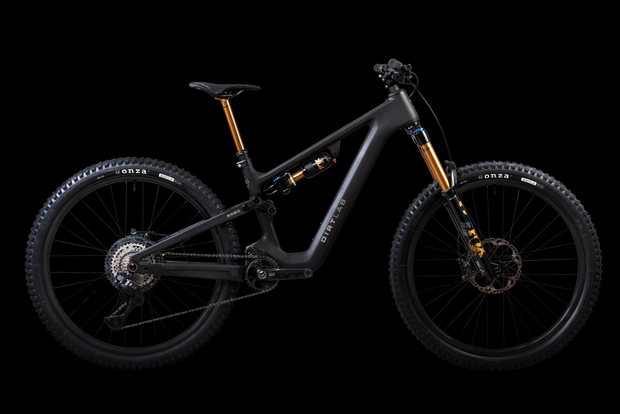

• • The Dirtlab Paratu CP Pedal bike Frame: A revolutionary pedal bike frame kit with our latest G-Volve geometry and K-Volve kinematics, S-Volve sizing, which, in terms of geometry, kinematics etc, 100% follows our E-bike variant. The downtube space here, however, is suited to fit a nice toolbag.

    • G-Volve geometry long. not too low & slack 63 Head angle paired with a 77.8 seat tube angle.
    • K-Volve kinematics here we switched from traditional horst link to a concentric pivot ruling out brake chatter disturbances to optimize the bottomless feel we are known for. low position when you use 29" F&R, High when you want a mullet setup 29F 27.5R.

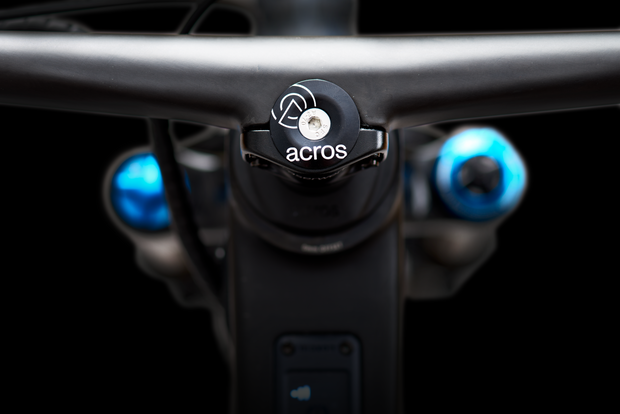

    • S-Volve sizing has become even better, as each frame now offers sizes within its range. We utilize a RA (Reach Adjust) headset system, allowing you to start in the 0 position, travel down your fork 10mm and use the shorter -5 position, or fork up 10mm and use the longer +5 position. The same thing works for people who are in between our sizes they can use the longer frame and start short or the samller frame and satrt long.
    • T47 BB 89.5mm
    • DT integrated storage space and an easy removable cover under the DT.



  • Pre-Order Process: We operate on a pre-order basis to ensure quality and value, with a 3-week lead time for painting and assembly. The FIRST DELIVERIES START IN JANUARY 2026. Reserve yours now!

  • Color Customization: Choose any Pantone color for a fully personalized bike, with a maximum lead time of 5 weeks for stocked frames. An upcharge applies to the standard paint cost.

  • Need More Info? If you have questions or want to chat, just drop us an email at sales@bikelab-inc.com

• We hope this breakdown makes everything about the Dirtlab Paratu CP frame clearer and that it has sparked you to get one. If you have any more questions or need further assistance, feel free to ask, we do one to one video meetings as an extra service free of charge and can assist you to buy the right bike. 😊

•

  GEOMETRY

•

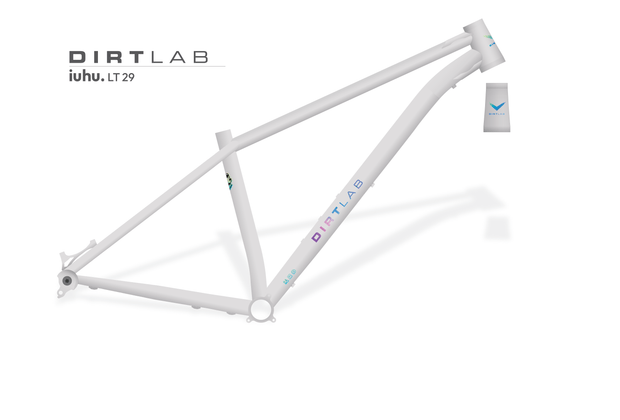

Iuhu ht lt Extreme Trail, Bikepark hardtail frame

• Designed for park and trail shredding:  built for the hardtail lovers and purists to be combined with 140 - 160mm forks. External routed cables for easy maintenance. Progressive geometry with a rider-centered gravity approach.

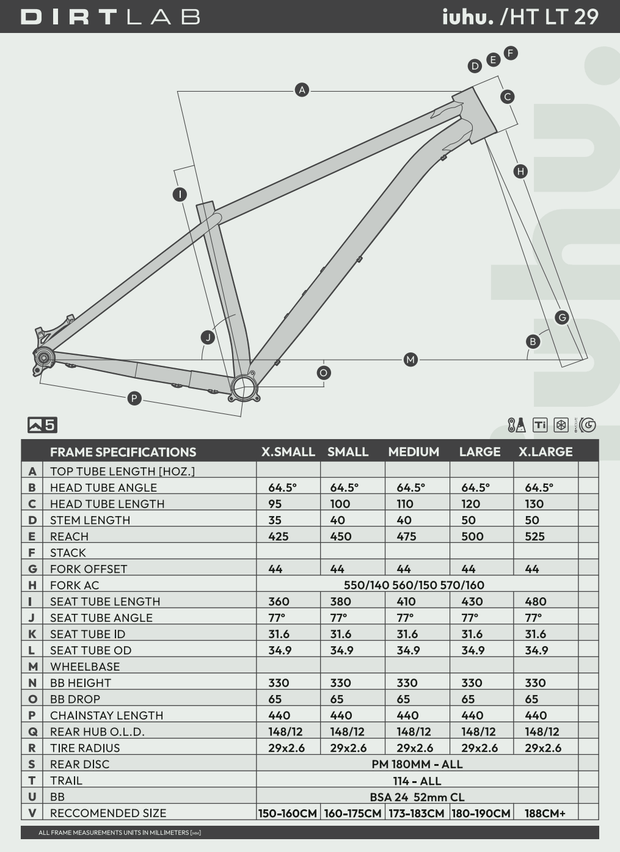

• Geometry
•
• Specs:

  • Fixed Dropout:

    • 148/12mm rear axle width

    • Udh hanger t type compatible

• Wheel and Tire Compatibility:

  • Built for 29” wheels but can be ridden with mullet 27.5” rear wheel

  • Tires ranging between 29 x 2.4-2.6“

• Frame Details:

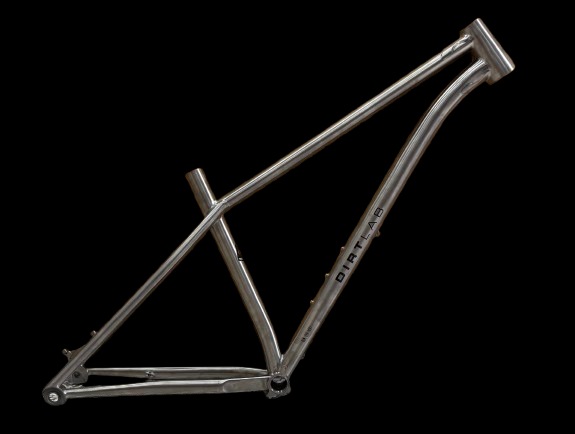

  • Made from 3AL 2.5V seamless titanium tubing

  • Available in sizes XS, S, M, L, XL

  • Frame weight around 1800 grams depending on size

  • Rear end spacing: 148/12

  • BB BSA T47 100mm shell with ISCG mount tabs.

• Finish Options:

  • Satin matte, Brushed or high polished Titanium

  • Hrtf or black water decal options available

• Order and Production:

  • Frames are available for pre-order

  • Production lead times are 50-60 days max.

Iuhu ht lt Extreme Trail, Bikepark hardtail frame

• Designed for Pumptrack/Dirtjump  and trail shredding:  built for the hardtail lovers and purists to be combined with 100mm forks. External routed cables for easy maintenance. Progressive geometry with a rider-centered gravity approach.



• Specs:

  • Fixed Dropout:

    • 142/12mm rear axle width

    • Udh hanger t type compatible

• Wheel and Tire Compatibility:

  • Built in 24/26/27.5 versions

  • Tires ranging between 24/26/27.5" x 2.0“

• Frame Details:

  • Made from 3AL 2.5V seamless titanium tubing

  • Available in sizes XS(24") S, M, L in 26" & 27.5"

  • Frame weight is around 1600 grams, depending on size

  • Rear end spacing: 142/12

  • BB BSA24 73mm shell with ISCG mount tabs.

• Finish Options:

  • Satin matte, Brushed or high polished Titanium

  • Hrtf or black water decal options available

• Order and Production:

  • Frames are available for pre-order

  • Production lead times are 50-60 days max.
