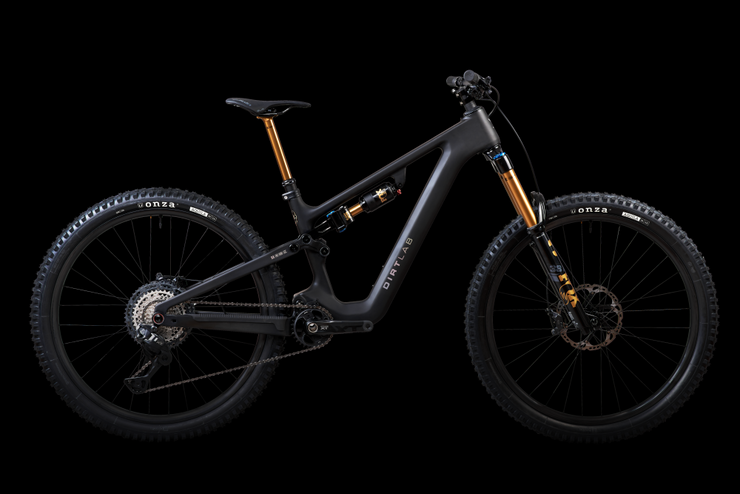

The Dirtlab Paratu CP Pedal bike Frame: A revolutionary pedal bike frame kit with our latest G-Volve geometry and K-Volve kinematics, S-Volve sizing, which, in terms of geometry, kinematics etc, 100% follows our E-bike variant. The downtube space here, however, is suited to fit a nice toolbag.
- G-Volve geometry long. not too low & slack 63 Head angle paired with a 77.8 seat tube angle.
- K-Volve kinematics here we switched from traditional horst link to a concentric pivot ruling out brake chatter disturbances to optimize the bottomless feel we are known for. low position when you use 29" F&R, High when you want a mullet setup 29F 27.5R.

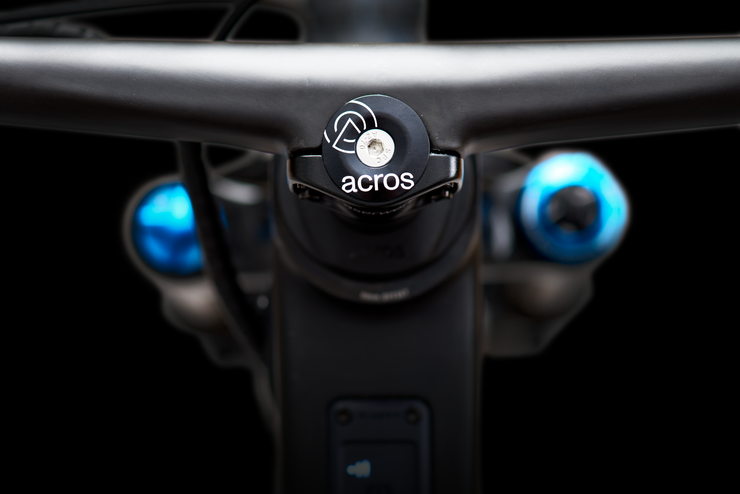

- S-Volve sizing has become even better, as each frame now offers sizes within its range. We utilize a RA (Reach Adjust) headset system, allowing you to start in the 0 position, travel down your fork 10mm and use the shorter -5 position, or fork up 10mm and use the longer +5 position. The same thing works for people who are in between our sizes they can use the longer frame and start short or the samller frame and satrt long.
- T47 BB 89.5mm
- DT integrated storage space and an easy removable cover under the DT.
-
Pre-Order Process: We operate on a pre-order basis to ensure quality and value, with a 3-week lead time for painting and assembly. The FIRST DELIVERIES START IN JANUARY 2026. Reserve yours now!
-
Color Customization: Choose any Pantone color for a fully personalized bike, with a maximum lead time of 5 weeks for stocked frames. An upcharge applies to the standard paint cost.
-
Need More Info? If you have questions or want to chat, just drop us an email at sales@bikelab-inc.com
-
-
We hope this breakdown makes everything about the Dirtlab Paratu CP frame clearer and that it has sparked you to get one. If you have any more questions or need further assistance, feel free to ask, we do one to one video meetings as an extra service free of charge and can assist you to buy the right bike. 😊
-

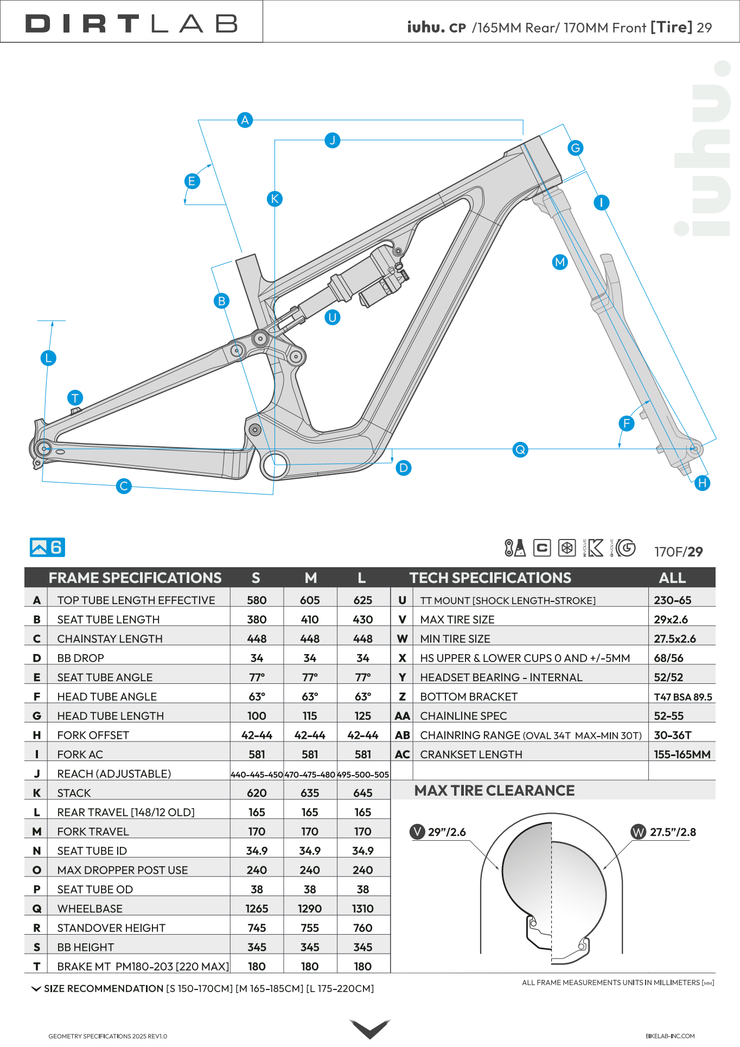

GEOMETRY
